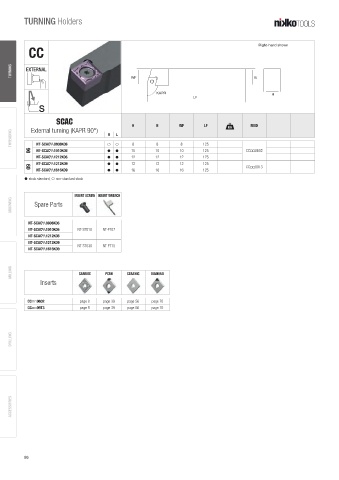

Page 88 - Nikko Tools - Update 2019

TURNING Holders

Right-hand shown
CC

TURNING EXTERNAL WF B

KAPR H
LF
S
SCAC
H B WF LF A MIID
External turning (KAPR 90°)
THREADING NT-SCAC /L0808K06 f f L 8 8 8 125
R
R
06 NT-SCAC R /L1010K06 h h 10 10 10 125 CC  0602
NT-SCAC R /L1212K06 h h 12 12 12 125
NT-SCAC /L1212K09 h h 12 12 12 125
R
09 CC  09T3
NT-SCAC R /L1616K09 h h 16 16 16 125
h stock standard, f non-standard stock

INSERT SCREW INSERT WRENCH
GROOVING Spare Parts

R
NT-SCAC /L0808K06
NT-SCAC R /L1010K06 NT-ST010 NT-FT07
NT-SCAC R /L1212K06
R
NT-SCAC /L1212K09
NT-ST030 NT-FT15
NT-SCAC R /L1616K09
MILLING CARBIDE PCBN CERAMIC DIAMOND

Inserts

CC 0602 page 8 page 39 page 56 page 70
CC 09T3 page 8 page 39 page 56 page 70

DRILLING

ACCESSORIES
