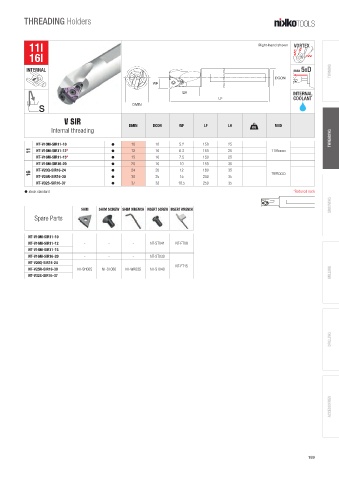

Page 191 - Nikko Tools - Update 2019

THREADING Holders

11I Right-hand shown VORTEX
16I

INTERNAL max 5XD TURNING
DCON
WF
LH INTERNAL
LF COOLANT
S DMIN
V sir
DMIN DCON WF LF LH A MIID
Internal threading
THREADING
NT-V10M-SIR11-10 h 10 10 5.2 150 25
11 NT-V16M-SIR11-12* h 12 16 6.3 150 25 11IR 
NT-V16M-SIR11-15* h 15 16 7.5 150 25
NT-V16M-SIR16-20 h 20 16 10 150 35
NT-V20Q-SIR16-24 h 24 20 12 180 35
16 16IR 
NT-V25R-SIR16-30 h 30 25 15 200 35
NT-V32S-SIR16-37 h 37 32 18.5 250 35
h stock standard *Reduced neck
GROOVING

SHIM SHIM SCREW SHIM WRENCH INSERT SCREW INSERT WRENCH
Spare Parts

NT-V10M-SIR11-10
NT-V16M-SIR11-12 - - - NT-ST041 NT-FT08
NT-V16M-SIR11-15
NT-V16M-SIR16-20 - - - NT-ST030
NT-V20Q-SIR16-24
NT-FT15
NT-V25R-SIR16-30 NT-SH065 NT-ST080 NT-WR025 NT-ST040
NT-V32S-SIR16-37 MILLING

DRILLING

ACCESSORIES

189
