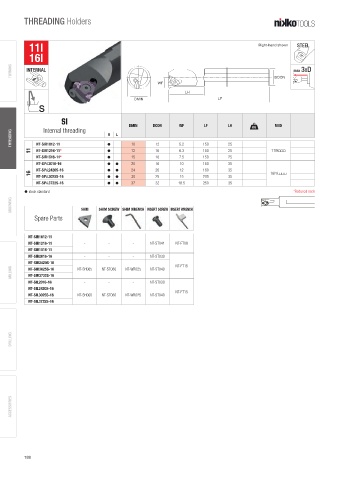

Page 190 - Nikko Tools - Update 2019

THREADING Holders

11I Right-hand shown STEEL
16I
TURNING INTERNAL max 3XD

WF DCON
LH
DMIN LF
S
SI
DMIN DCON WF LF LH A MIID
Internal threading
THREADING NT-SIR1012-11 h L 10 12 5.2 150 25
R

11 NT-SIR1216-11* h 12 16 6.3 150 25 11IR 
NT-SIR1516-11* h 15 16 7.5 150 25
NT-SI /L2016-16 h h 20 16 10 150 35
R
R
NT-SI /L2420S-16 h h 24 20 12 180 35
16 16I /L 
R
NT-SI /L3025S-16 h h 30 25 15 200 35
R
NT-SI /L3732S-16 h h 37 32 18.5 250 35
R
h stock standard *Reduced neck
GROOVING SHIM SHIM SCREW SHIM WRENCH INSERT SCREW INSERT WRENCH
Spare Parts

NT-SIR1012-11
NT-SIR1216-11 - - - NT-ST041 NT-FT08
NT-SIR1516-11
NT-SIR2016-16 - - - NT-ST030
NT-SIR2420S-16 NT-FT15
MILLING NT-SIR3025S-16 NT-SH065 NT-ST080 NT-WR025 NT-ST040
NT-SIR3732S-16
NT-SIL2016-16 - - - NT-ST030
NT-SIL2420S-16
NT-FT15
NT-SIL3025S-16 NT-SH060 NT-ST080 NT-WR025 NT-ST040
NT-SIL3732S-16

DRILLING

ACCESSORIES

188
