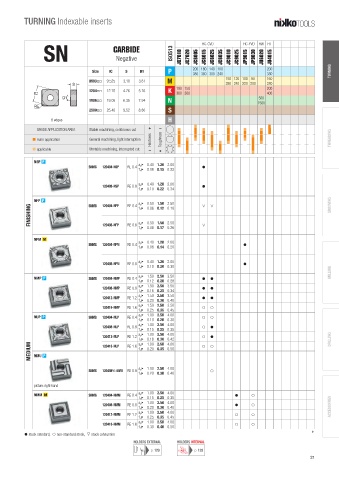

TURNING Indexable inserts
HC-CVD HC-PVD HW HT
SN CARBIDE ISO513 JC7010 JC7020 JC8005 JC8015 JC8025 JC8035 JC9010 JC9025 JP9015 JP9030 JU6020 JU4015
Negative
Size IC S D1 P 200 180 140 100 200 TURNING
380 360 300 240
380
0903 9.525 3.18 3.81 M 150 120 100 80 160
280 240 220 200
280
1204 12.70 4.76 5.16 K 180 150 200
380 300
400
500
1906 19.05 6.35 7.94 N 1500
2509 25.40 9.52 8.80 S
8 edges H
d d d
GRADE APPLICATION AREA Stable machining, continuous cut d Bd d d d d d d d
d
d
d
d
d
d
d
d
d
d
d
d
d
d
d
d
d main application General machining, light interruption | Hardness + + Toughness | d d d d d d d d d d d THREADING
d
d
d
d
d
d
d
d
d
d
d
d
d applicable Unstable machining, interrupted cut d d d d d d
d
d
d
NSP P
a p£ 0.40 1.20 2.00
SNMG 120404-NSP RE 0.4 h
f n£ 0.08 0.15 0.22
a p£ 0.40 1.20 2.00
120408-NSP RE 0.8 h
f n£ 0.10 0.22 0.34
NFP P SNMG 120404-NFP RE 0.4 a p£ 0.50 1.50 2.50 m m GROOVING
FINISHING f n£ 0.06 0.12 0.18
a p£ 0.50 1.50 2.50
RE 0.8
120408-NFP
f n£ 0.08 0.17 0.26 m
NFM M
a p£ 0.40 1.20 2.00
SNMG 120404-NFM RE 0.4 h
f n£ 0.08 0.14 0.20
a p£ 0.40 1.20 2.00
120408-NFM RE 0.8 h
f n£ 0.10 0.20 0.30
a p£ 1.50 2.50 3.50 MILLING
NMP P SNMG 120404-NMP RE 0.4 h h
f n£ 0.12 0.20 0.28
a p£ 1.50 2.50 3.50
120408-NMP RE 0.8 h h
f n£ 0.16 0.25 0.34
a p£ 1.50 2.50 3.50
120412-NMP RE 1.2 h h
f n£ 0.20 0.30 0.40
a p£ 1.50 2.50 3.50
120416-NMP RE 1.6 f f
f n£ 0.25 0.35 0.45
a p£ 1.00 2.50 4.00
NUP P SNMG 120404-NUP RE 0.4 f f
f n£ 0.10 0.20 0.30
a p£ 1.00 2.50 4.00
120408-NUP RE 0.8 f h
f n£ 0.15 0.25 0.35
a p£ 1.00 2.50 4.00
120412-NUP RE 1.2 f h
f n£ 0.18 0.30 0.42 DRILLING
MEDIUM NMU P 120416-NUP RE 1.6 f n£ 0.20 0.35 0.50 f f
a p£ 1.00 2.50 4.00
a p£ 1.00 2.50 4.00
R
SNMG 120408 /L-NMU RE 0.8 f
f n£ 0.20 0.30 0.40
picture: right-hand
a p£ 1.00 2.50 4.00
NMM M SNMG 120404-NMM RE 0.4 h f
f n£ 0.15 0.25 0.35
a p£ 1.00 2.50 4.00
120408-NMM RE 0.8 h f
f n£ 0.20 0.30 0.40 ACCESSORIES
a p£ 1.00 2.50 4.00
120412-NMM RE 1.2 f f
f n£ 0.25 0.35 0.45
a p£ 1.00 2.50 4.00
120416-NMM RE 1.6 f f
f n£ 0.30 0.40 0.50
£
h stock standard, f non-standard stock, m stock exhaustion
